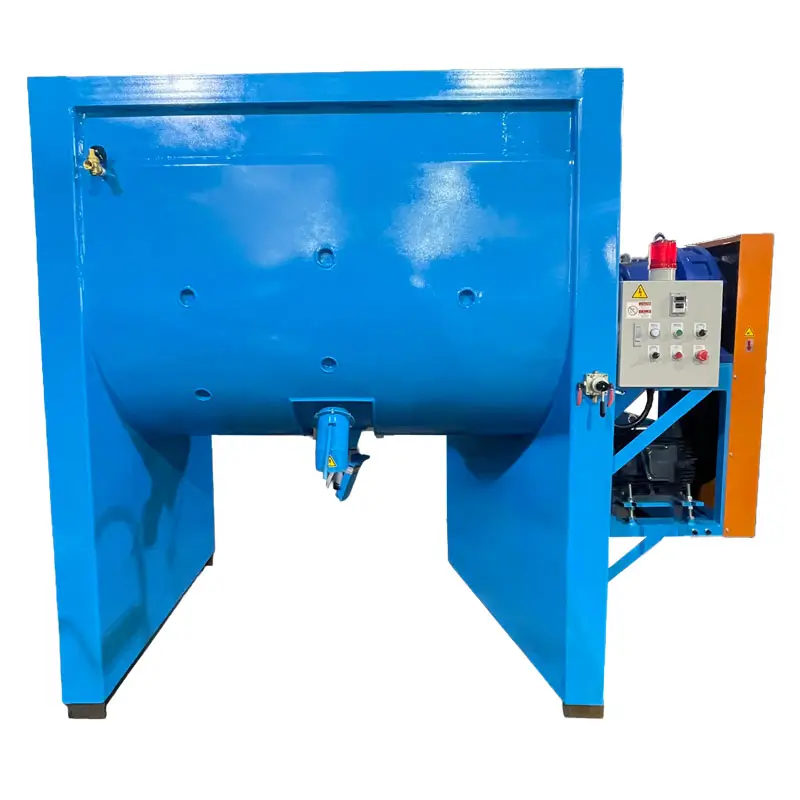

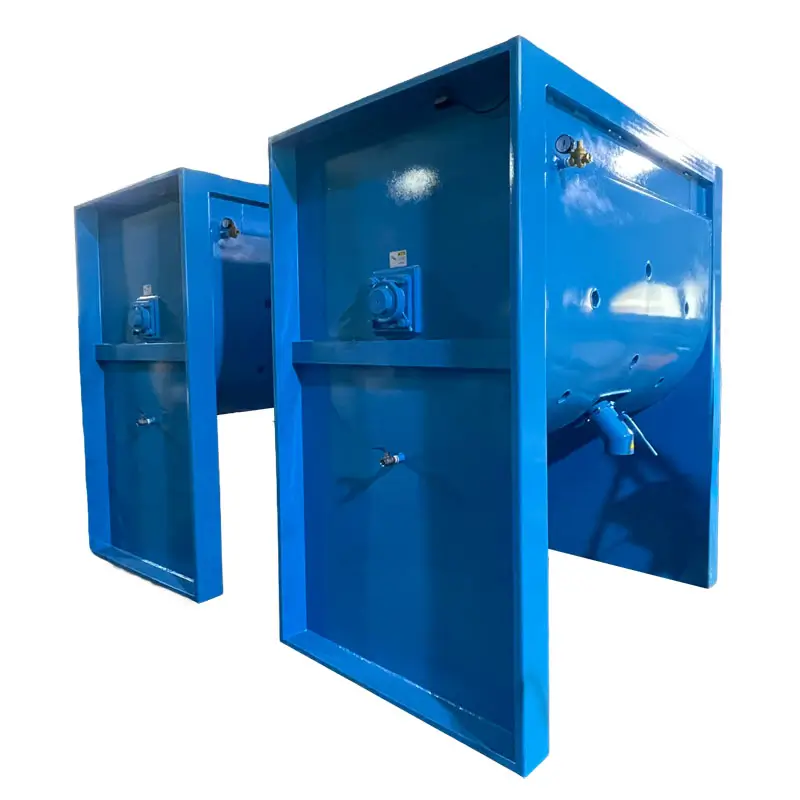

Pellet Cooling Mixing Machine

Pellet Cooling Mixing Machine

Model:TS-280-1000KW
Add to inquiry

 APPLICATION :

uitable for mixing granular or powdery materials.
It is suitable for mixing before and after plastic extrusion and injection.

 FEATURES :

Horizontal blender is used for mixing two or more additive premixes, especially for mixing powder and ester granular raw materials that are prone to bridges or have high viscosity. The working principle of the horizontal blender: The horizontal cylinder is equipped with biaxial rotating paddles in opposite directions, which can mix the materials quickly and evenly, faster and more efficiently. Even if the materials have differences in specific gravity and particle size, good mixing effects can be achieved after rapid and vigorous stirring by the staggered blades.



 Model  TS-280-1000KW
 Screw Dia.  60 mm
 Motor  15 HP * 6 P
 HPCapacity  1000 KGS
 Machine Dimensions  L2800 * W1300 * H2450 mm
 Outer Plate Thickness  3 mm, Water Jacket for Cooling (2-layer water cooling), with Pressure Regulating Valve
