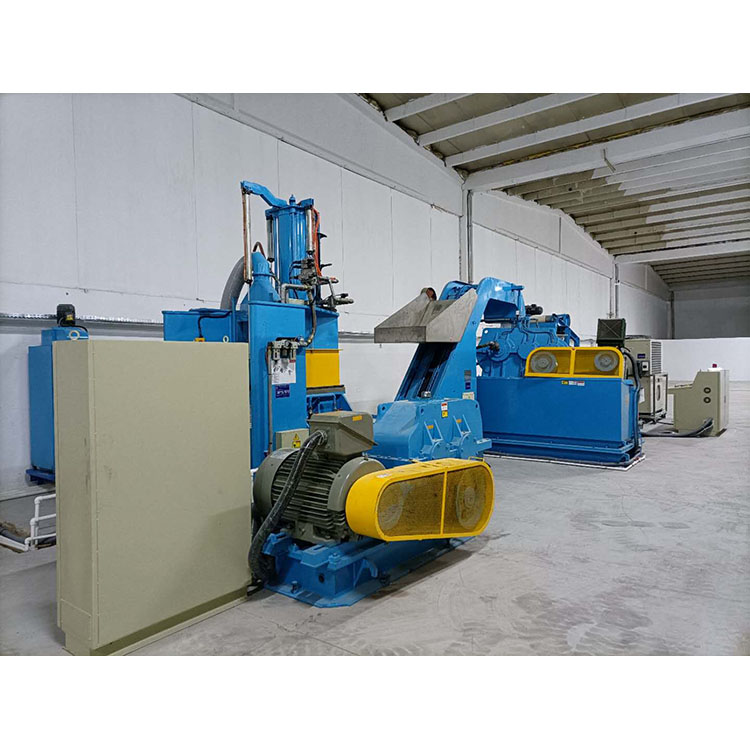

Auto Mixing Line

Auto Mixing Line

Model:TS-911-5
This machine enables compound mixing to become fully automatic &
continuous process. The whole mixing line requires only two operators. No skilled rubber technicians are required to operation two roller mixing machine. This automatic mixing line is easy and efficient to increase production. It also increases working safety.
Download Add to inquiry

APPLICATION:

This machine enables compound mixing to become fully automatic & continuous process.  The whole mixing line requires only two operators.   No skilled rubber technicians are required to operation two roller mixing machine.  This automatic mixing line is easy and efficient to increase production.  It also increases working safety.

The Twin Taper Screw Roller Head Extruder consists of two tapered screws and two rollers. The machine is normally applied after dispersion a kneader or a banbury.   After the rubber material is mixed by a dispersion kneader or a banbury, compound, the compound is fed into the hopper and then through the two tapered screws for extruding to the two roller calender automatically.  Compound is calendered to  desired thickness rubber sheets. The machine is designed and engineered for high speed sheet forming operations.

FEATURES:

1. Labor and power saving.

2. Low motor horsepower, high production output, high productivity.

3. An automatic machine designed for continuous automatic operation.

4. Specially designed tapered screws combined with extruding chamber for taking the mixed material completely, without material deposit or waste problems.

5. Excellent cooling system features high cooling efficiency, and assures superior material property and consistent quality.

6. Large opening of material inlet port for convenient material in-feed.

7. Easy machine cleaning. Easy machine maintenance and long service life.

SPECIFICATION:





Model

TS-911-5

Applicable

Applicable Dispersion Kneader(L)  75-110

Applicable Intensive Mixer(L)  75-100

Twin Taper Screw Roller Head Extruder

Max capacity1050(kg/hour)

Horsepowe40-60 HP

Speed 2.6~26 R.P.M

Roller die calendar

Roller dia.: 351 mm

Roller length: : 600mm

Calendaring width :  200 - 400 mm

Calendaring thickness : 6 – 12 mm

Horsepower : 20-30 HP

Speed  : 1.32 ~ 13.2 R.P.M

Overall dimensions

L4165mm x W2500mm x H2050mm




https://youtu.be/RbuTQXASjnI
